TP-Link Archer BE400 (BE6500) – Specifications

WIRELESS

WiFi Speeds (BE6500)

• 5 GHz: 5764 Mbps (802.11be)

• 2.4 GHz: 688 Mbps (802.11be)

WiFi Range

• Ideal for 3-bedroom houses

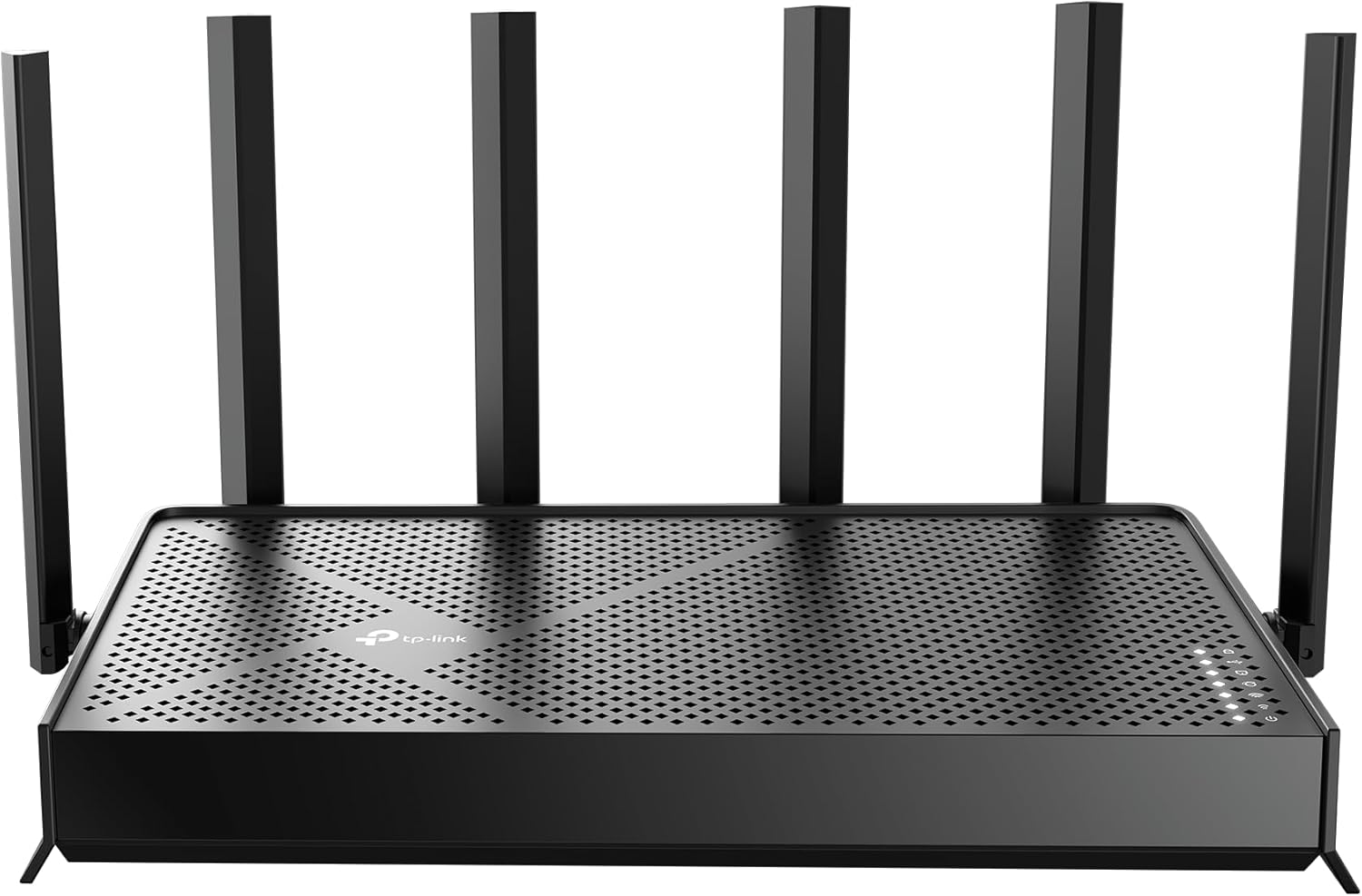

• 6× External Antennas

• Beamforming for focused signal strength

WiFi Capacity – High

• Dual-Band

• MU-MIMO

• OFDMA

• Airtime Fairness

• DFS (Dynamic Frequency Selection)

• 4 Streams

Advanced Features

• Multi-Link Operation (MLO)

• 4K-QAM

• Multi-RUs

• EasyMesh-Compatible

• Works with Alexa & Google Assistant

• Dedicated IoT Network

Wireless Modes

• Router Mode

• Access Point Mode

---

SECURITY

Network Security

• SPI Firewall

• Access Control

• IP & MAC Binding

• Application Layer Gateway

HomeShield Security

• Real-Time IoT Protection

• Malicious Site Blocker

• Intrusion Prevention System

• DDoS Attack Prevention

• Home Network Scanner

Guest Network

• 1× 5 GHz Guest Network

• 1× 2.4 GHz Guest Network

VPN Server

• OpenVPN

• PPTP

• L2TP

• WireGuard

VPN Client

• OpenVPN

• PPTP

• L2TP

• WireGuard

WiFi Encryption

• WPA

• WPA2

• WPA3

• WPA/WPA2-Enterprise (802.1x)

---

HARDWARE

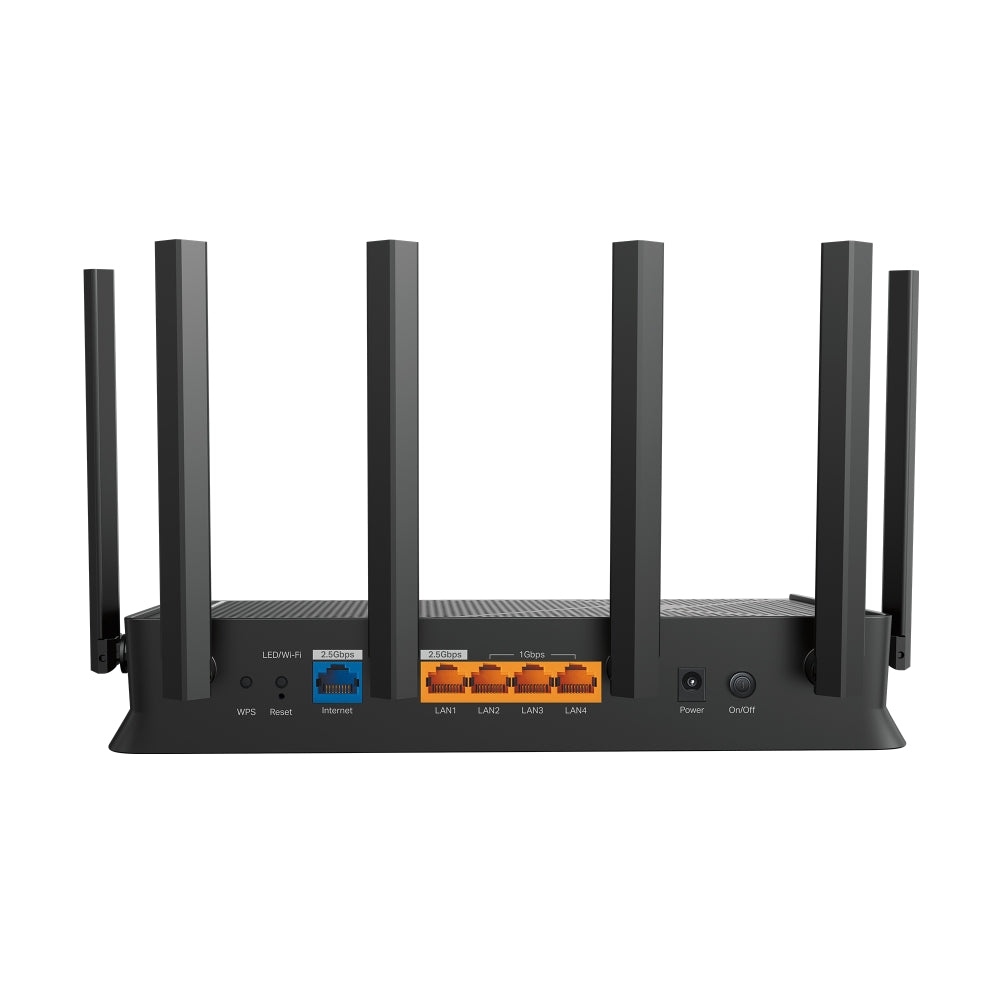

Ethernet Ports

• 1× 2.5 Gbps WAN

• 1× 2.5 Gbps LAN

• 3× 1 Gbps LAN

USB

• 1× USB 3.0

Supported Partition Formats:

• NTFS

• exFAT

• HFS+

• FAT32

Supported Functions:

• FTP Server

• Media Server

• Samba Server

Buttons

• Power

• Wi-Fi/LED

• WPS

• Reset

Power

• 12 V ⎓ 2.5 A

---

SOFTWARE

Protocol

• IPv4

• IPv6

EasyMesh

• EasyMesh Compatible

Parental Controls (HomeShield)

• Custom Profiles

• Content Filter Library

• Family Time / Bedtime / Off Time

• Time Rewards

• Online Time Ranking

• Pause Internet

• Weekly & Monthly Reports

WAN Types

• Dynamic IP

• Static IP

• PPPoE

• PPTP

• L2TP

Quality of Service

• QoS by Device

Cloud Services

• Auto Firmware Upgrade

• TP-Link ID

• DDNS

NAT Forwarding

• Port Forwarding

• Port Triggering

• DMZ

• UPnP

IPTV

• IGMP Proxy

• IGMP Snooping

• Bridge

• Tag VLAN

DHCP

• Address Reservation

• DHCP Client List

• DHCP Server

DDNS

• TP-Link

• NO-IP

• DynDNS

Management

• Tether App

• Web Interface

---

OTHER

System Requirements

• Internet Explorer 11+, Firefox 12+, Chrome 20+, Safari 4+, or JavaScript-enabled browser

• Cable/DSL modem (if required)

• Active internet subscription

Certifications

• CE

• FCC

• RoHS

Operating Environment

• Operating Temperature: 0°C–40°C (32°F–104°F)

• Operating Humidity: 10%–90% non-condensing
