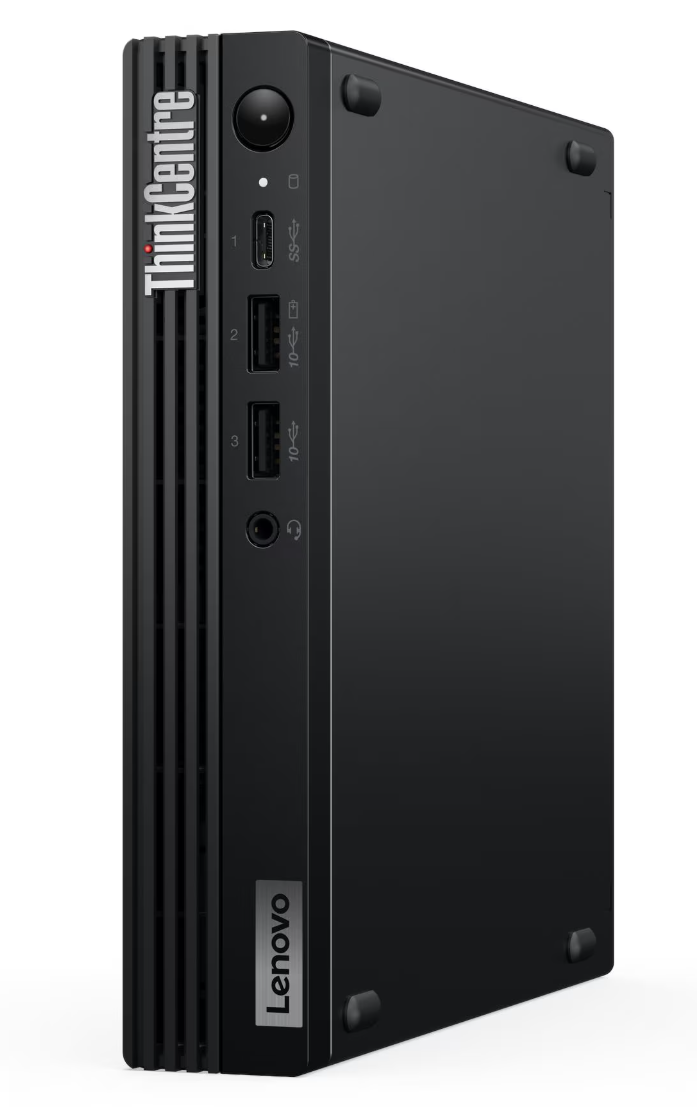

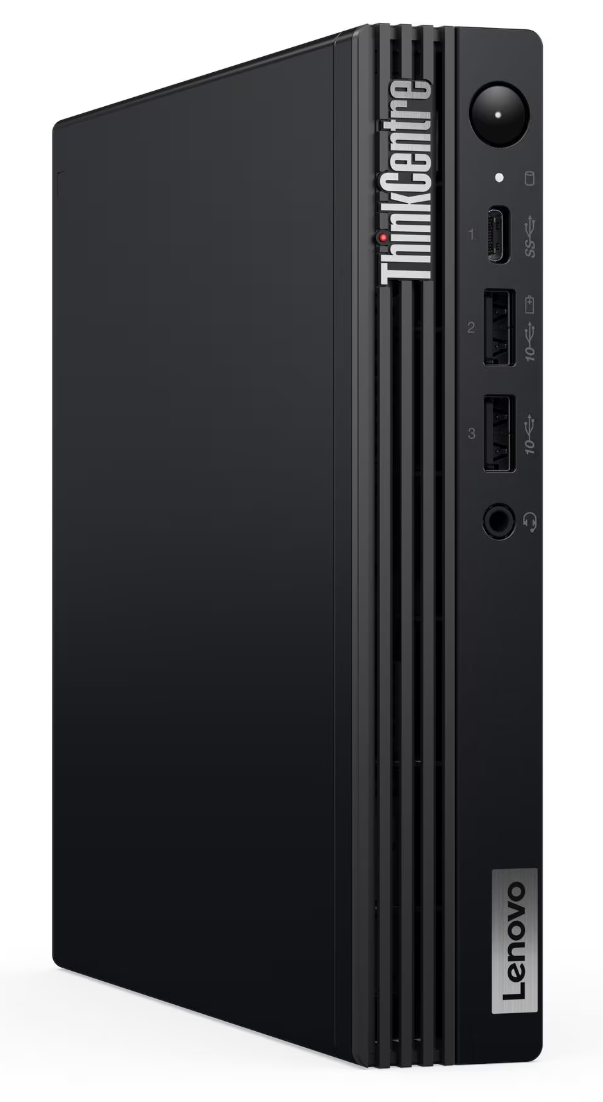

Lenovo ThinkCentre M70q Gen5 Tiny I7-14700T,8GB,512GB SSD,DOS,1YR (12TD005VGR)

Intel® Core i7-14700T, 20C (8P + 12E) / 28T, Max Turbo up to 5.2GHz, P-core 1.3 / 5.0GHz, E-core 0.9 / 3.7GHz, 33MB

Integrated Intel® UHD Graphics 770

Intel® Q670 Chipset

1x 8GB SO-DIMM DDR5-5600

Two DDR5 SO-DIMM slots, dual-channel capable

Up to 64GB (2x 32GB DDR5 SO-DIMM)

512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal

Dual SSD mode: up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 2TB

None

No card reader

None

High Definition (HD) Audio, Realtek® ALC233VB or Conexant CX11771 codec

2Wx1

135W 89% Adapter

USB Traditional Keyboard, Black, Arabic

USB Calliope Mouse, Black

Three M.2 slots (one for WLAN, two for SSD)

Black

None

None

Toolless Chassis Screw

None

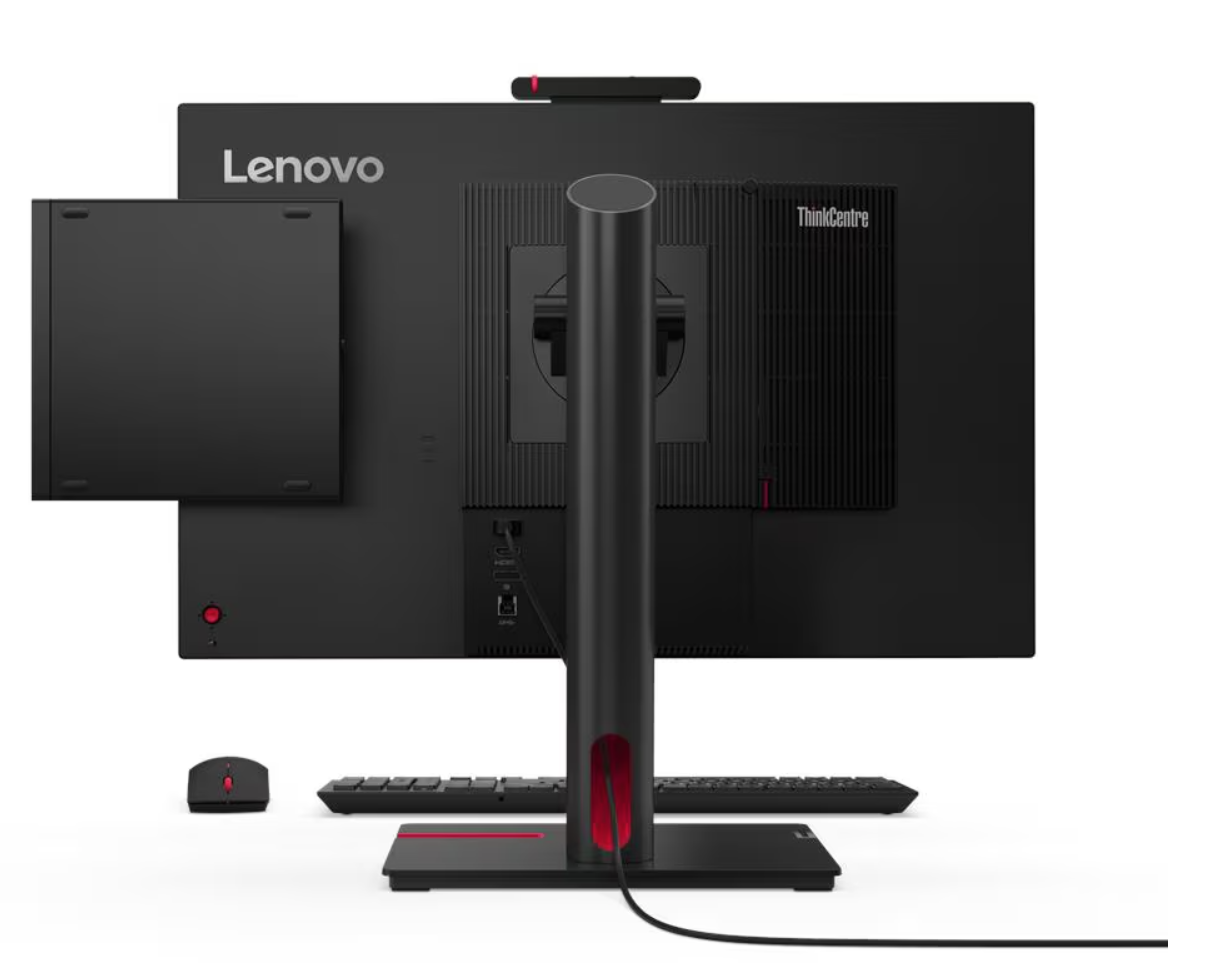

VESA Mount

No IO box

Pen Not Supported

Tiny (1L)

179 x 182.9 x 36.5 mm with rubber feet (7.05 x 7.2 x 1.44 inches with rubber feet)

Around 1.25 kg (2.76 lbs)

Non-WWAN

Integrated 100/1000M

• 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 5V@0.9A charging
• 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging
• 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
• 1x headphone / microphone combo jack (3.5mm)

None

• 1x USB-A (Hi-Speed USB / USB 2.0), with smart power-on
• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
• 1x HDMI® 2.1 TMDS
• 1x DisplayPort™ 1.4a (HBR2, DSC)
• 1x Ethernet (RJ-45)
